Comfort Features: Flip-up padded armrest, Swing away detachable footrest, elevating legrest

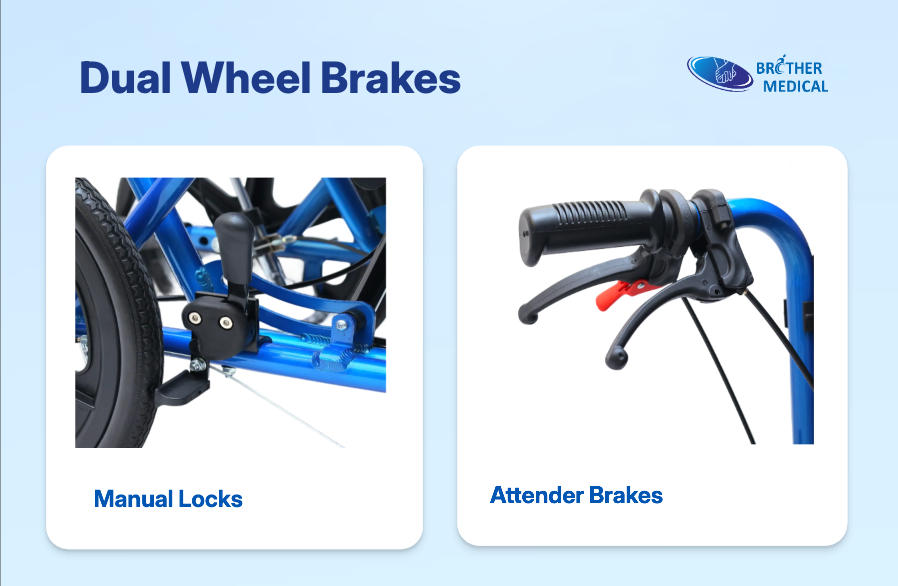

Safety Features: Push-to-lock brake, Anti-tilt seat belt
Backrest Adjustability: 90 -180°
Foldability: Yes
Front Castor: 6'' PU
Rear Wheel: 16'' Solid with Quick-release Magnetic Axles
Product Weight: 22 kgs
Max. load: 100kgs
Seat width: 12", 14", 16", 18"
-
BME4620
-
Shanghai Brother Medical
-
87131000
Brother Medical Star Product - CP Wheelchair
Feature Showcase
Adaptive Width Technology for Long-Term Use

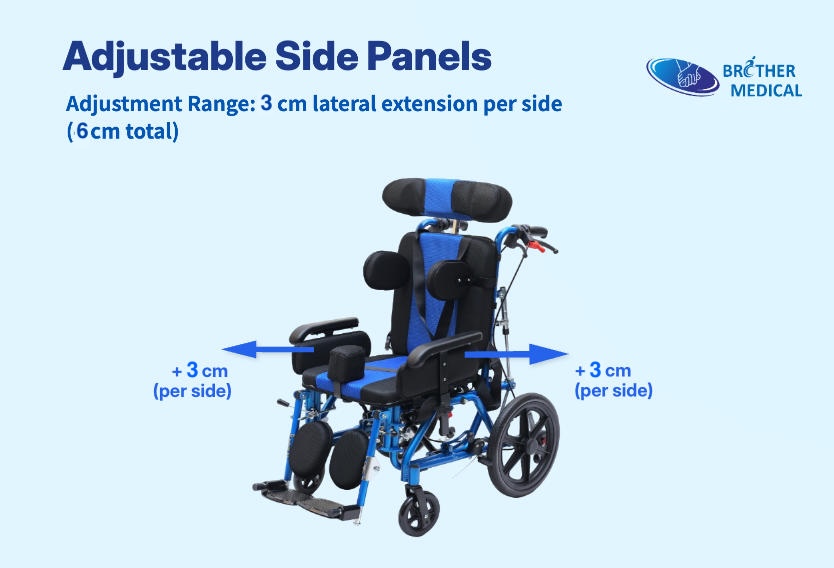

Each side panel can be extended outward by 3 cm (6 cm total adjustment). This allows the wheelchair to 'grow' with the child or be finely tuned for specific body types, providing a customized fit that prevents pressure sores and maintains postural alignment.
Details
Fully Customizable "Growth" System

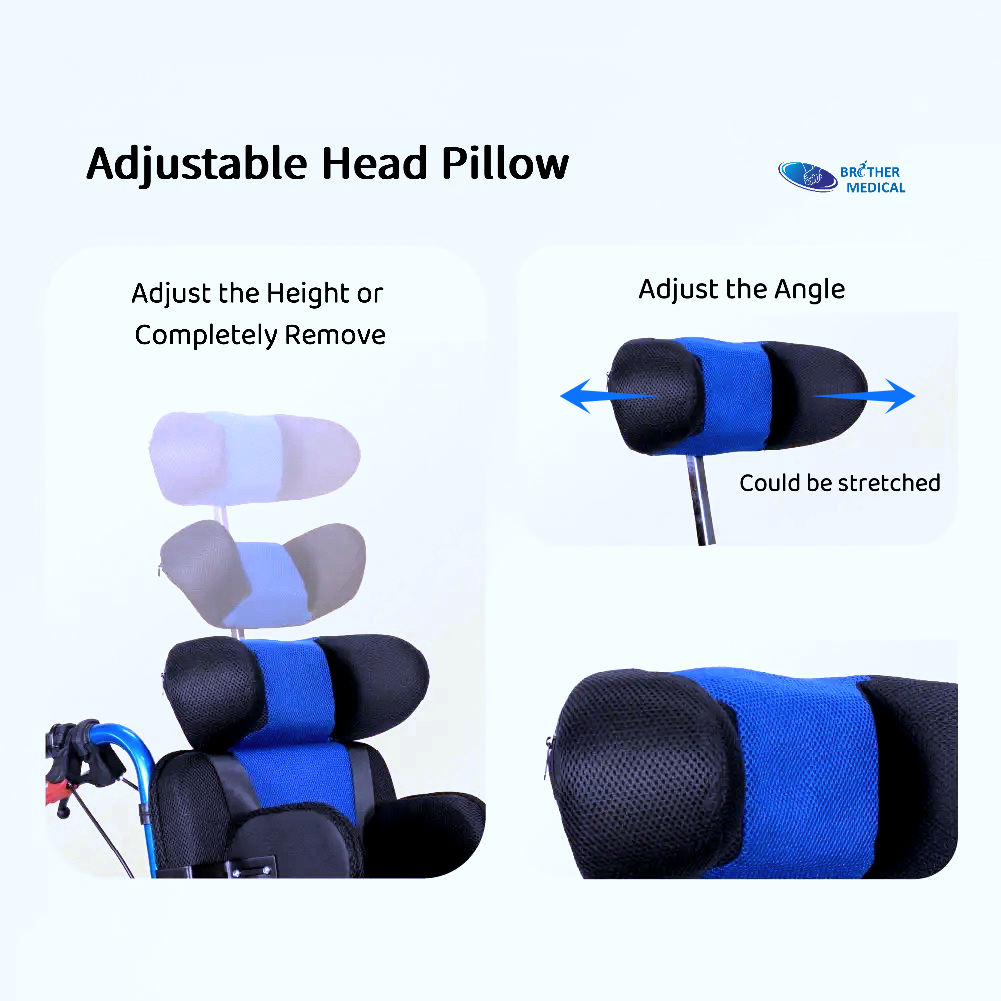

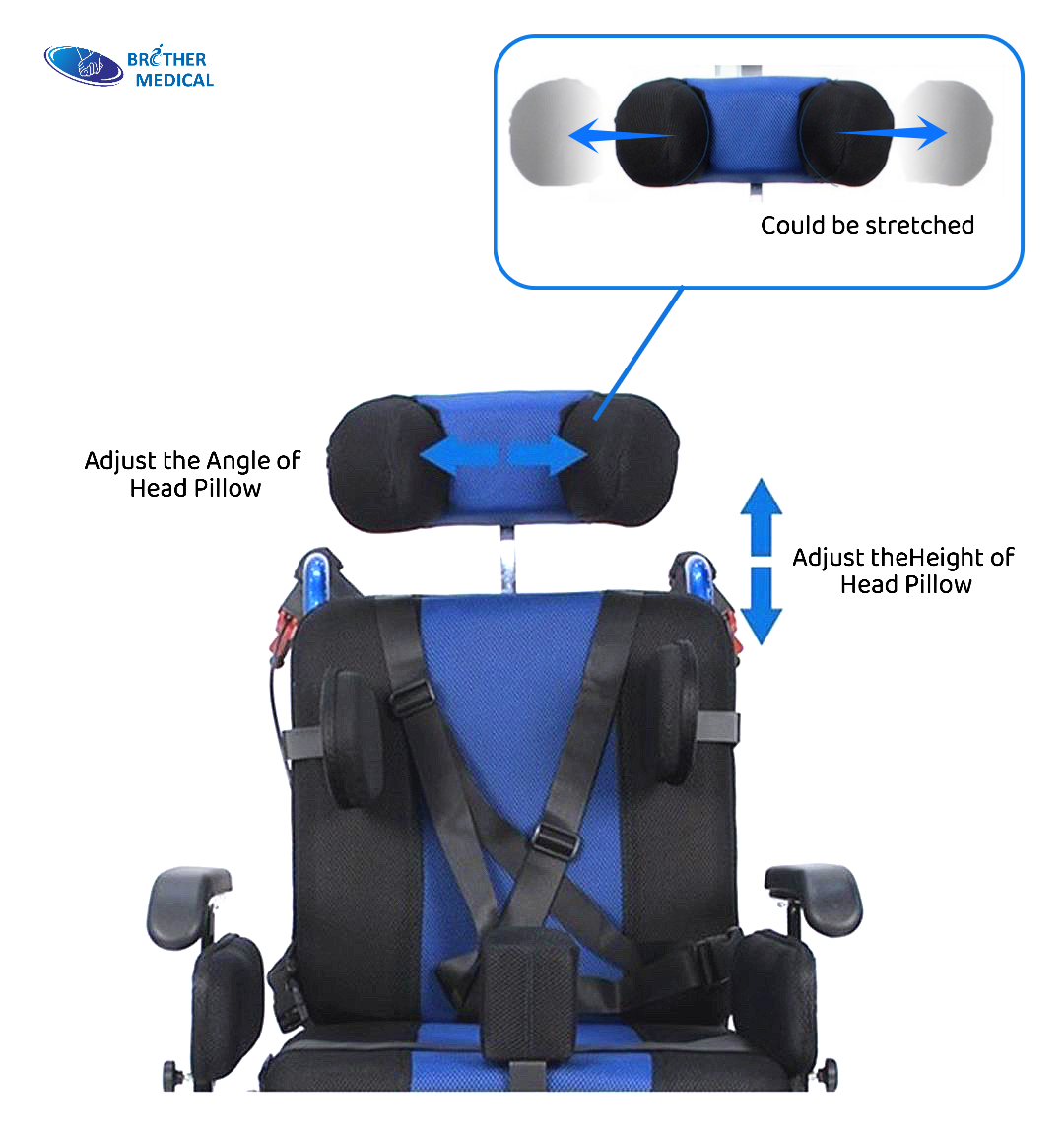

Adjustable Headrest

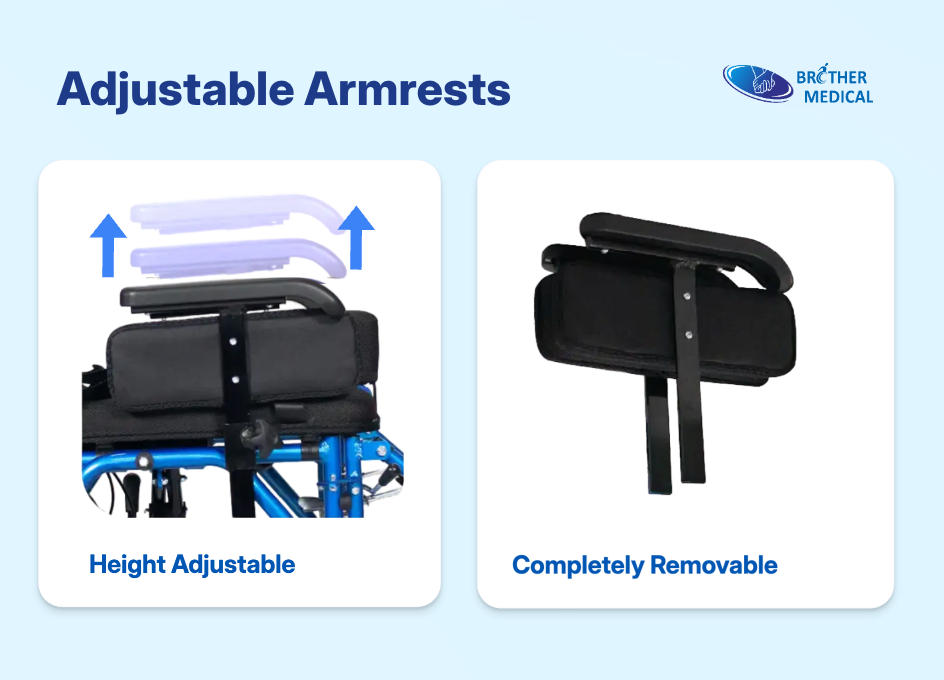

Ergonomic Armrests: Prevent shoulder shrugging or arm fatigue by aligning with the user's natural reach.
Tension-Adjustable Seating: Customize seat firmness and tilt angles for maximum pelvic stability.
Elevating Footrests: Prevent foot-drop and accommodate changing leg lengths, ensuring the user's feet are always safely supported.

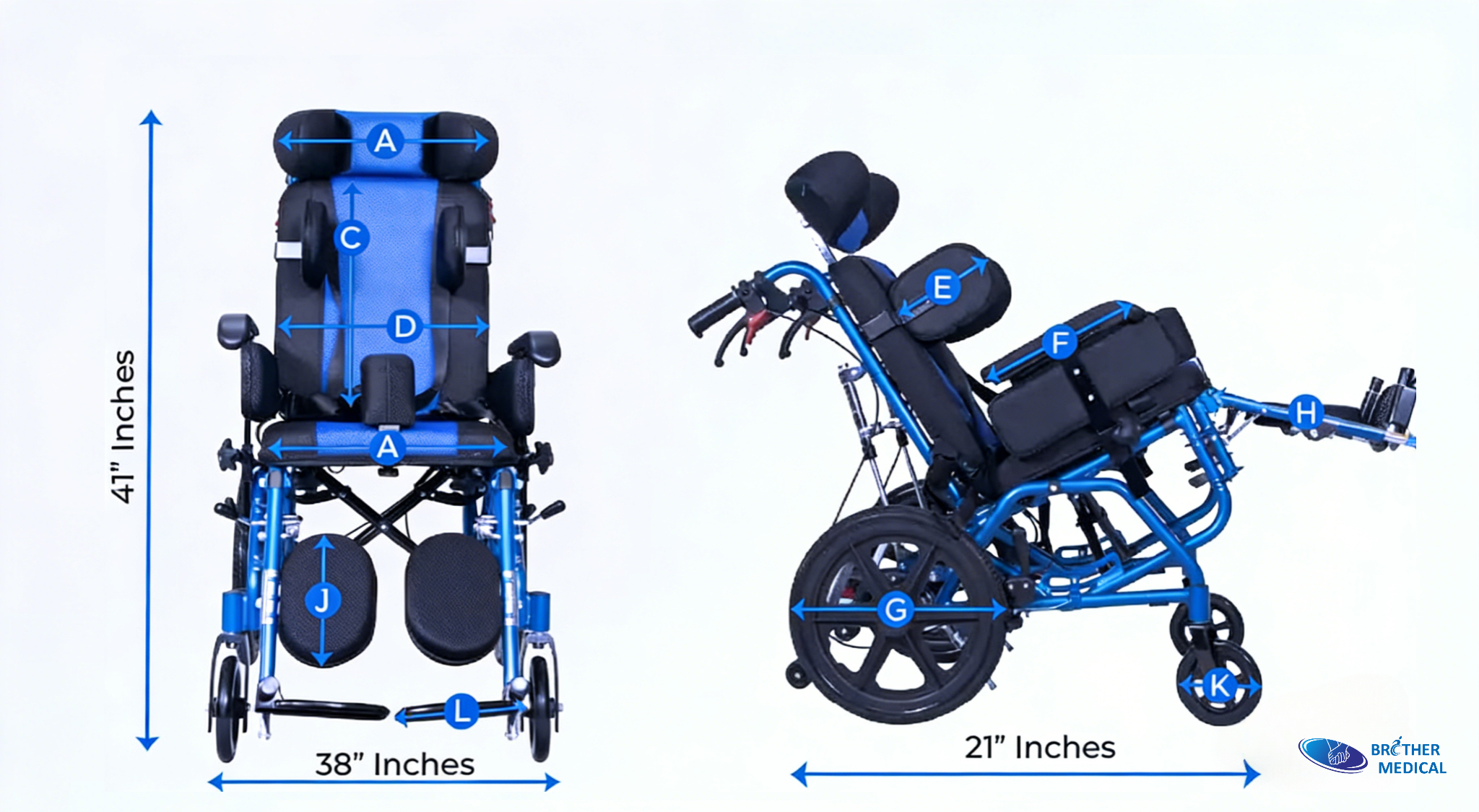

Size information
OEM&ODMAvailable seat widths: 12", 14", 16", 17", 18", and 20"
| Item 14" Model | 15" Model | 16" Model (Standard) | 17" Model (Widen) | 18" Model (Widen) | 20" Model | ||
|---|---|---|---|---|---|---|---|
| Max. Load | 75 kg | 75 kg | 75 kg | 100 kg | 90 kg | 100 kg | 100 kg |
| Seat Width (A) | 12" | 14" | 15" | 16" | 17" | 18" | 20" |
| Seat Depth (B) | 17" | 17" | 17" | 17" | 17" | 17" | 17" |
| Backrest Height (C) | 17.5" | 17.5" | 17.5" | 17.5" | 17.5" | 17.5" | 17.5" |
| Backrest Width (D) | 12" | 14" | 15" | 16" | 17" | 18" | 20" |
| Armrest Length (E) | 12" | 12" | 12" | 12" | 12" | 12" | 12" |
| Rear Wheel Size (F) | 15" | 15" | 15" | 15" | 15" | 15" | 15" |
| Front Wheel Size (G) | 06" | 06" | 06" | 06" | 06" | 06" | 06" |
| Leg Rest Length (H) | 14" | 14" | 14" | 14" | 14" | 14" | 14" |
| Head Rest (I) | 5.5" / 12" | 5.5" / 14" | 5.5" / 17" | 5.5" / 16" | 5.5" / 17" | 5.5" / 18" | 5.5" / 20" |
| Calf Support (J) | 5.5" / 8" | 5.5" / 8" | 5.5" / 8" | 5.5" / 8" | 5.5" / 8" | 5.5" / 8" | 5.5" / 8" |
| Lumbar Support (K) | 5.5" / 8" | 5.5" / 8" | 5.5" / 8" | 5.5" / 8" | 5.5" / 8" | 5.5" / 8" | 5.5" / 8" |
| Foot Plate (L) | 7" / 5.5" | 7" / 5.5" | 7" / 5.5" | 7" / 5.5" | 7" / 5.5" | 7" / 5.5" | 7" / 5.5" |
Overall L x W x H | 21"/30"/41" | 21"/34"/41" | 21"/38"/41" | 21"/40"/41" | 21"/38"/41" | 21"/44"/41" | 21"/48"/41" |
| Seat Width | 12" | 14" | 15" | 16" | 17" | 18" |
|---|---|---|---|---|---|---|
| User | Children | Kids/Teens | Petite Adults | Standard Adults | Plus Size | Extra Large |
Designed for comfort and mobility, the CP wheelchair features a sturdy aluminum alloy frame tailored for kids and individuals with disabilities.
Advanced safety with cross-reinforced frame, anti-tilt seat belts, and a secure adjustment handle accessible only to caregivers.
0-180° adjustable backrest with soft inner cushion lets users sit upright, recline, or lie fully flat for complete relaxation.
Includes a portable, anti-odor toilet and spacious rear storage bag for convenient everyday use and outings.
Durable 16” rear wheels and 6” solid castors ensure smooth maneuverability on a robust yet lightweight wheelchair.
Customer Reviews
⭐⭐⭐⭐⭐ | M.K. – Medical Distributor (Russia)
"The growth-adjustable side panels are a game changer for our government tenders. It reduces the inventory we need to carry because one chair can fit a wider range of children as they grow. The aluminum frame is very sturdy for our winters."
⭐⭐⭐⭐⭐ | A.O. – NGO Procurement Officer (Nigeria)
"We ordered these in bulk for a regional clinic. The PU wheels are much more durable on uneven surfaces compared to standard PVC. Excellent value for money for high-volume healthcare projects."
⭐⭐⭐⭐⭐ | K.M. – Rehabilitation Center Director (Brazil)
"Impressive load capacity. We use the 18" model for both teenagers and smaller adults. The 4 cm width adjustment provides the 'custom feel' our patients need without the custom price tag."
